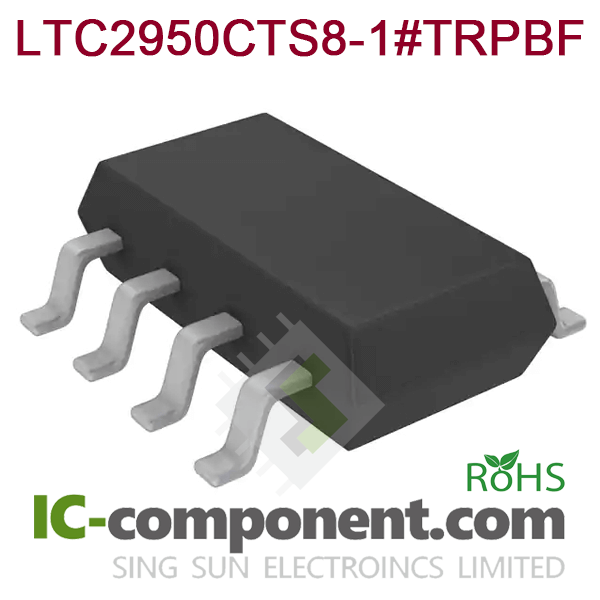

LTC2950CTS8-1#TRPBF

Brand

Linear Technology Corporation, a member of the S&P 500, has been designing, manufacturing and marketing a broad line of high performance analog integrated circuits for major companies worldwide for three decades.
The Company’s products provide an essential bridge between their analog world and the digital electronics in communications, networking, industrial, automotive, computer, medical, instrumentation, consumer, and military and aerospace systems.
Linear Technology produces power management, data conversion, signal conditioning, RF and interface ICs, μModule subsystems, and wireless sensor network products.
In July 2016 Analog Devices agreed to buy Linear Technology for 14.8 billion dollars.This acquisition was finalized on March 10, 2017
Applications for the Company's products include telecommunications, cellular telephones, networking products, notebook and desktop computers, video/multimedia, industrial instrumentation, automotive electronics, factory automation, process control, and military and space systems.
The Company's principal product categories include amplifiers, battery management, data converters, high frequency, interface, voltage regulators and voltage references.
Jotrin Electronics Limited. will satisfy your need for any and all board-level electronic components, tool requirements and raw materials.

Description

Pushbutton On/Off Controller

Features
■ Adjustable Pushbutton On/Off Timers
■ Low Supply Current: 6µA
■ Wide Operating Voltage Range: 2.7V to 26.4V
■ EN Output (LTC2950-1) Allows DC/DC Converter Control
■ EN Output (LTC2950-2) Allows Circuit Breaker Control
■ Simple Interface Allows Graceful µP Shut Down
■ High Input Voltage PB Pin with Internal Pull Up Resistor
■ ±10kV ESD HBM on PB Input
■ Accurate 0.6V Threshold on KILL Comparator Input
■ 8-Pin 3mm × 2mm DFN and ThinSOT™ Packages
Applications
■ Portable Instrumentation Meters
■ Blade Servers
■ Portable Customer Service PDA
■ Desktop and Notebook Computers
Description
The LTC^®2950 is a micropower, wide input voltage range,pushbutton ON/OFF controller. The part contains a pushbutton input with independently programmable ON and OFF debounce times that control the toggling of an open drain enable output. The part also contains a simple microprocessor interface to allow for proper system housekeeping prior to power down. Under system fault conditions, an internal KILL timer ensures proper power down.
The LTC2950 operates over a wide 2.7V to 26.4V input voltage range to accommodate a wide variety of input power supplies. Very low quiescent current (6µA typical) makes the LTC2950 ideally suited for battery powered applications. Two versions of the part are available to accommodate either positive or negative enable polarities.
The parts are available in either 8-lead 3mm × 2mm DFN or ThinSOT packages.
